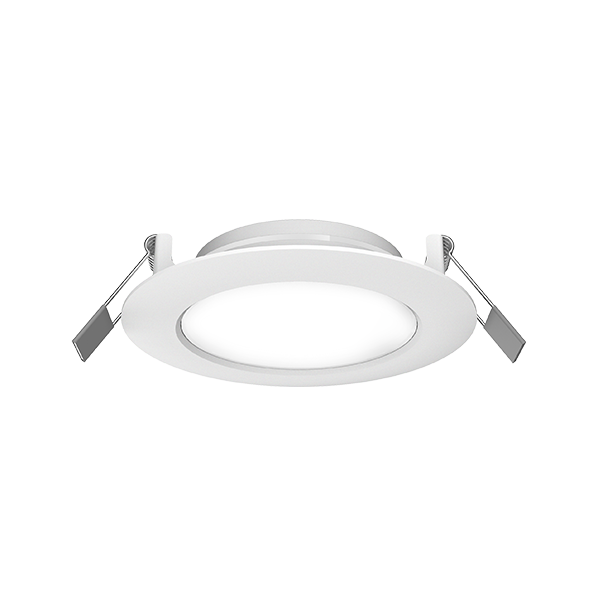

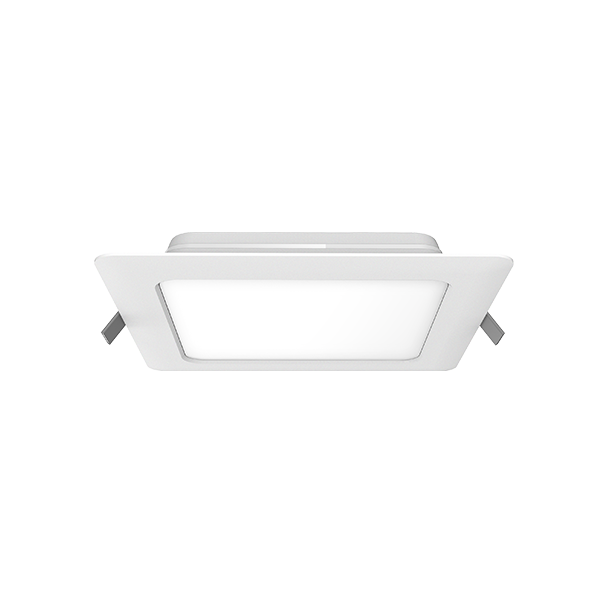

LED Slim Downlight EcoMax III Dim
You are here
LED Slim Downlight EcoMax III Dim
Benefits:
• Up to 50% energy saving compared to conventional downlight
• Lasts 3 times longer than conventional downlight , up to 30000hrs lifetime
• Independent driver can be replaced by professionals
• All versions available in different light colour and with Triac dimming
Features:
• High Lumen Output
• Long lifespan
• Easy to Repair
• High Quality Dimming
Applications
Home
Hotel
Office
Retail
School
Shopping Mall
Technical Data
| Specifications Model |
 |
 |
 |
 |
|---|---|---|---|---|
| LEDDownlight Rc-ESIII S200-24W-Dim-6500-WH | LEDDownlight Rc-ESIII S200-24W-Dim-4000-WH | LEDDownlight Rc-ESIII S200-24W-Dim-3000-WH | LEDDownlight Rc-ESIII S200-18W-Dim-6500-WH | |
| Optical parameters | ||||
| Color Temperature | 6 500K | 4 000K | 3 000K | 6 500K |
| Lumen | 1 920lm | 1 920lm | 1 800lm | 1 440lm |
| CRI(Ra) | 80 | 80 | 80 | 80 |
| Electrical parameters | ||||
| Input voltage range(VAC) | 220-240V | 220-240V | 220-240V | 220-240V |
| Input frequency(Hz) | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Input current(A) | 0.18 | 0.18 | 0.18 | 0.15 |
| Efficacy(lm/W) | 80 | 80 | 75 | 80 |
| Rated wattage(W)(Ta 25℃) | 24 | 24 | 24 | 18 |
Packaging information
| Code/Description | Packaging unit | Pieces per unit | Dimensions | Gross weight | Volume |
|---|---|---|---|---|---|
| LEDDownlight Rc-ESIII R100-6W-Dim-3000-WH | Shipping carton box | 30 | 144 × 144 × 44 mm | 0.208 kg | |
| LEDDownlight Rc-ESIII R100-6W-Dim-4000-WH | Shipping carton box | 30 | 144 × 144 × 44 mm | 0.208 kg | |
| LEDDownlight Rc-ESIII R100-6W-Dim-6500-WH | Shipping carton box | 30 | 144 × 144 × 44 mm | 0.208 kg | |
| LEDDownlight Rc-ESIII R150-12W-Dim-3000-WH | Shipping carton box | 20 | 189 × 166 × 44 mm | 0.294 kg | |
| LEDDownlight Rc-ESIII R150-12W-Dim-4000-WH | Shipping carton box | 20 | 189 × 166 × 44 mm | 0.294 kg | |
| LEDDownlight Rc-ESIII R150-12W-Dim-6500-WH | Shipping carton box | 20 | 189 × 166 × 44 mm | 0.294 kg | |
| LEDDownlight Rc-ESIII R200-18W-Dim-3000-WH | Shipping carton box | 10 | 240 × 216 × 44 mm | 0.423 kg | |
| LEDDownlight Rc-ESIII R200-18W-Dim-4000-WH | Shipping carton box | 10 | 240 × 216 × 44 mm | 0.423 kg | |
| LEDDownlight Rc-ESIII R200-18W-Dim-6500-WH | Shipping carton box | 10 | 240 × 216 × 44 mm | 0.423 kg | |
| LEDDownlight Rc-ESIII R200-24W-Dim-3000-WH | Shipping carton box | 10 | 240 × 216 × 44 mm | 0.423 kg | |
| LEDDownlight Rc-ESIII R200-24W-Dim-4000-WH | Shipping carton box | 10 | 240 × 216 × 44 mm | 0.423 kg | |
| LEDDownlight Rc-ESIII R200-24W-Dim-6500-WH | Shipping carton box | 10 | 240 × 216 × 44 mm | 0.423 kg | |
| LEDDownlight Rc-ESIII S100-6W-Dim-3000-WH | Shipping carton box | 30 | 144 × 144 × 44 mm | 0.221 kg | |
| LEDDownlight Rc-ESIII S100-6W-Dim-4000-WH | Shipping carton box | 30 | 144 × 144 × 44 mm | 0.221 kg | |
| LEDDownlight Rc-ESIII S100-6W-Dim-6500-WH | Shipping carton box | 30 | 144 × 144 × 44 mm | 0.221 kg | |
| LEDDownlight Rc-ESIII S150-12W-Dim-3000-WH | Shipping carton box | 20 | 189 × 184 × 44 mm | 0.337 kg | |
| LEDDownlight Rc-ESIII S150-12W-Dim-4000-WH | Shipping carton box | 20 | 189 × 184 × 44 mm | 0.337 kg | |
| LEDDownlight Rc-ESIII S150-12W-Dim-6500-WH | Shipping carton box | 20 | 189 × 184 × 44 mm | 0.337 kg | |
| LEDDownlight Rc-ESIII S200-18W-Dim-3000-WH | Shipping carton box | 10 | 240 × 234 × 44 mm | 0.495 kg | |
| LEDDownlight Rc-ESIII S200-18W-Dim-4000-WH | Shipping carton box | 10 | 240 × 234 × 44 mm | 0.495 kg | |
| LEDDownlight Rc-ESIII S200-18W-Dim-6500-WH | Shipping carton box | 10 | 240 × 234 × 44 mm | 0.495 kg | |
| LEDDownlight Rc-ESIII S200-24W-Dim-3000-WH | Shipping carton box | 10 | 240 × 234 × 44 mm | 0.495 kg | |
| LEDDownlight Rc-ESIII S200-24W-Dim-4000-WH | Shipping carton box | 10 | 240 × 234 × 44 mm | 0.495 kg | |
| LEDDownlight Rc-ESIII S200-24W-Dim-6500-WH | Shipping carton box | 10 | 240 × 234 × 44 mm | 0.495 kg |
